Troubleshooting Hasura GraphQL engine errors

The Hasura GraphQL engine may not work as expected and will throw unexpected errors if the tables/views tracked by the GraphQL engine are altered using psql or any other PostgreSQL client.

The Hasura GraphQL engine creates and maintains an internal state based on the database it is configured to use. This internal state will comprise information about the tables/views, relationships and access control rules defined on them using the Hasura GraphQL engine. See Hasura GraphQL metadata schema for information on how this internal state is maintained. It is highly recommended doing any modifications to the database schema only through the Hasura console to avoid corrupting the GraphQL engine’s state.

Following are the list of error messages returned by the GraphQL engine when it encounters an inconsistent state:

Error: no such table/view exists in postgres

This error is thrown when a table/view tracked by the Hasura GraphQL engine is not available in the database.

For example, you will encounter the above error if you have:

  • Created/tracked a table called author from console.
  • Opened psql or adminer or any other PostgreSQL client and deleted author table.
  • Restarted GraphQL engine.

In this example, the GraphQL engine expects the table author to be available in the database to function properly but it can’t find it.

Solution

  • Connect to the database and switch to hdb_catalog schema.
  • Delete the row from hdb_table table where the column table_name has the value author.
  • Restart the GraphQL engine to verify.

Error: no foreign constraint exists on the given column

The Hasura GraphQL engine validates all the relationships (created using foreign key/manually) before it starts serving. When it encounters a relationship defined from table A -> B it looks for a foreign key constraint in table A and when it can’t find it, it throws the above error.

Solution

  • Connect to the database and switch to hdb_catalog schema.
  • In the hdb_relationship table, find the entry for the above relationship and delete it.
  • Restart GraphQL engine to verify.

Error: field already exists

When a relationship is created using the Hasura GraphQL engine, it creates a special field with the relationship name which is used while fetching nested objects using GraphQL.

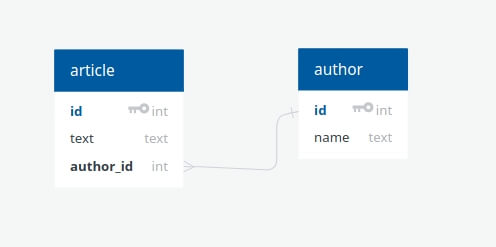

Let’s say we have tables called article and author as follows:

article author schema

Using the console if you have created a relationship named author from the article table to the author table, the Hasura GraphQL engine will create a special field author in the article table in its internal state. This field will be available via the GraphQL interface.

When this table is described using psql, the author field will not be available as part of the list of fields returned by the describe command as it is something added by Hasura GraphQL engine. Now if a new column is created with the same name, i.e. author, via psql, the Hasura GraphQL engine will throw the above error when restarted as it has two references to the author field for the article table.

Solution

  • Delete the problematic column from the table.
  • Restart GraphQL engine to verify.

OR

  • Connect to the database and switch to the hdb_catalog schema.
  • In the hdb_relationship table, find the entry for the above relationship and delete it.
  • Restart the GraphQL engine to verify.

Error: column does not exist

This error is thrown when a column of a table used by the Hasura GraphQL engine is not available in the database.

For example, you will encounter the above error if you have:

  • Created a permission rule using a column in a check.
  • Opened psql or adminer or any other PostgreSQL client and deleted the column from the table.
  • Restarted GraphQL engine.

In this example, the GraphQL engine expects the column to be available in the table to function properly but it can’t find it.

Solution

  • Connect to the database and switch to the hdb_catalog schema.
  • Delete the row from the hdb_permission table where the column table_name has the same value as the table mentioned in the error and the column perm_def involves the missing column.
  • Restart the GraphQL engine to verify.

Error: cannot continue due to new inconsistent metadata

Some updates to the Hasura GraphQL engine may have Hasura catalogue version bumps. The GraphQL engine server automatically migrates the catalogue to the latest version on startup. This migration may fail if the previous metadata state is inconsistent.

Solution

  • Start the older version of the GraphQL engine.
  • Open the Hasura console to find the inconsistencies.
  • Clear the inconsistencies.
  • Start the newer version.
